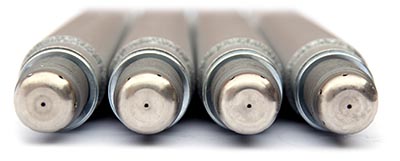

7664356 pre-chamber spark plug with cable (new Siemens part no. 7664764)
Guascor spar plug / Siemens spark plug
76.64.356 (Siemens 76.64.764) prechamber spark plugs available for Guascor HGM560 gas engines supplied by MultiTorch.
Amplification of ignition energy level in main combustion chamber.
Fast and complete combustion process.
Reduced combustion pressure variations.
Improved engine efficiency.
Reduced NOx emission level.
Lower voltage requirement for the spark ignition.
High durability without maintenance.
Better engine performance due to lower wear rates.
No deformation of the plug housing during assembly to the elongated plug and cable plug.
Spark Plugs Replacement Guide
| 1200rpm | 1500rpm | 1800rpm | |||||
| REF | HOURS | REFERENCE DOCUMENT | HOURS | REFERENCE DOCUMENT | HOURS | REFERENCE DOCUMENT | |
| FG/ FGLD natural gas | 76.64.291 | 1250 | IO-G-M-00-073 | 1000 | IO-G-M-00-074 | ||
| 76.64.375 | 5000 | 4000 | |||||
| FG/ FGLD biogas (*) | 76.64.292 | 1250 | IO-G-M-00-073 | 1000 | IO-G-M-00-074 | ||
| 76.64.375 | 5000 | 4000 | |||||
| SFGLD natural gas | 76.64.375 | 4500 | IO-G-M-00-067 | 3750 | IO-G-M-00-065 | 3000 | IO-G-M-00-066 |
| SFGLD natural gas ISLAND | 76.64.375 | 7500 | IO-G-M-00-057 | 6000 | IO-G-M-00-038 | 4500 | IO-G-M-00-058 |
| SFGLD natural gas PRIME | 76.64.292 | 1000 | IO-G-M-00-061 | ||||
| SFGLD natural gas STAND-BY | 76.64.292 | 1000 | IO-G-M-00-019 | ||||
| SFGLD biogas (*) | 76.64.292 | 1250 | IO-G-M-00-067 | 1000 | IO-G-M-00-065 | 1000 | IO-G-M-00-066 |
| 76.64.375 | 4500 | 3750 | 3000 | ||||
| SFGLD natural gas LCR 9,3:1 | 76.64.292 | 1250 | IO-G-M-00-034 | 1000 | IO-G-M-00-024 | 800 | IO-G-M-00-035 |
| 76.64.375 | 5000 | 4000 | 3200 | ||||
| SFGLD natural gas LCR 8:1 | 76.64.292 | 2000 | IO-G-M-00-024 | 1600 | IO-G-M-00-035 | ||
| SFGLD syngas (**) | 76.64.292 | 800 | IO-G-M-00-042 | 700 | IO-G-M-00-003 | 600 | IO-G-M-00-043 |
| 76.64.375 | 4000 | 3500 | 3000 | ||||
| SFGRD natural gas | 76.64.292 | 1000 | IO-G-M-00-062 | ||||
| SFGRD natural gas PRIME | 76.64.292 | 1200 | IO-G-M-00-063 | ||||
| SFGRD natural gas STAND-BY | 76.64.292 | 1000 | IO-G-M-00-064 | ||||
| HGM natural gas | 76.64.604 | 3500 | IO-G-M-00-072 | 3500 | IO-G-M-00-070 | 3500 | IO-G-M-00-071 |
| HGM biogas | 76.64.604 | 3500 | IO-G-M-00-072 | 3500 | IO-G-M-00-070 | 3500 | IO-G-M-00-071 |
| SFGM natural gas | 76.64.685 | 3000 | IO-G-M-00-068 | 3000 | IO-G-M-00-069 | ||
| SFGM natural gas ISLAND | 76.64.685 | 4800 | IO-G-M-00-051 | 4800 | IO-G-M-00-059 | ||
| SFGM biogas | 76.64.685 | 3000 | IO-G-M-00-068 | 3000 | IO-G-M-00-069 | ||
| SFGM propane | 76.64.356 | 3000 | IO-G-M-00-040 | 3000 | IO-G-M-00-041 | ||
| SFE ethanol | 76.64.292 | 4800 | IO-L-M-00-001 | ||||
In case the engine is operating at variable speed always select your spark plugs in reference with the highest speed range.
(*) In case the variation of the LHV of the utilized biogas exeeds 10 per cent it is recommended to used 76.64.292 (S7664761) spark plugs.
(**) In case of very contaminated gas it is recommended to use 76.64.292 (S 76.64.761) spark plugs.
Verified 2021 February
